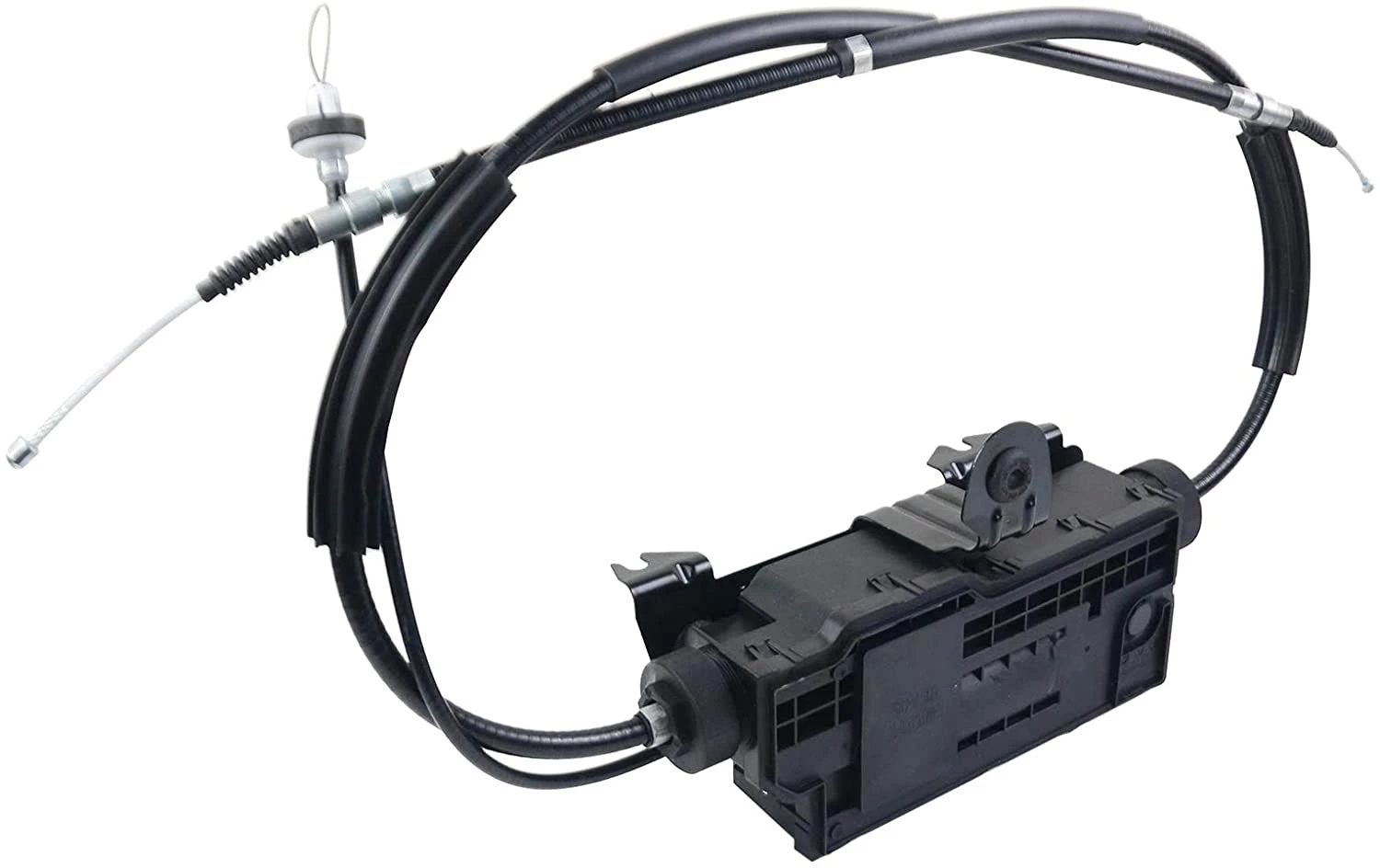

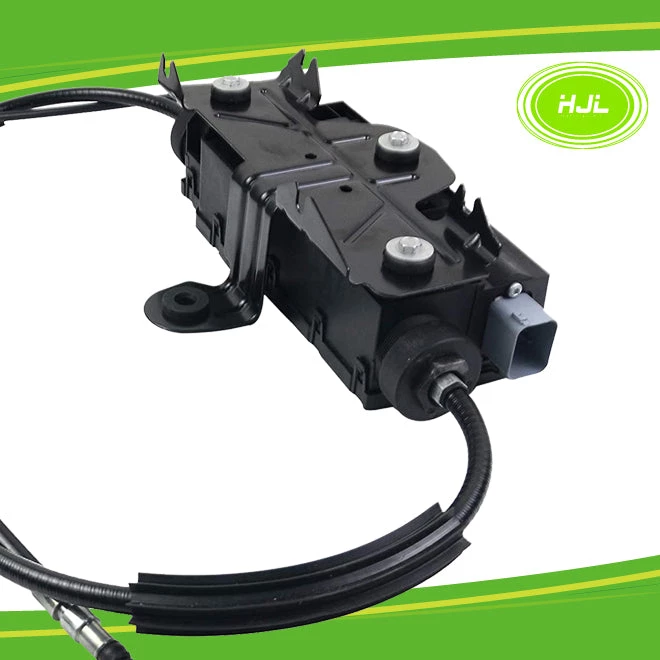

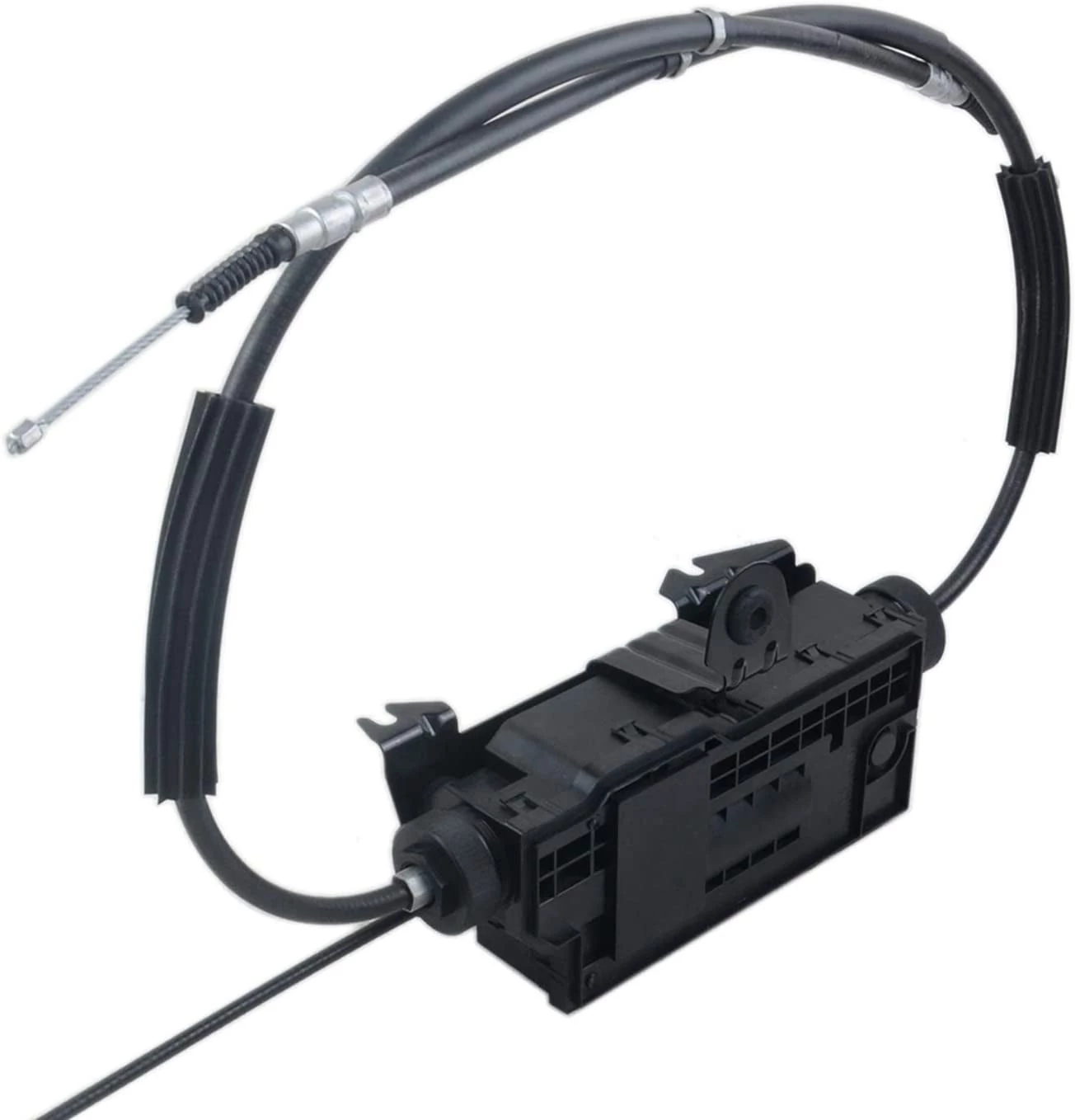

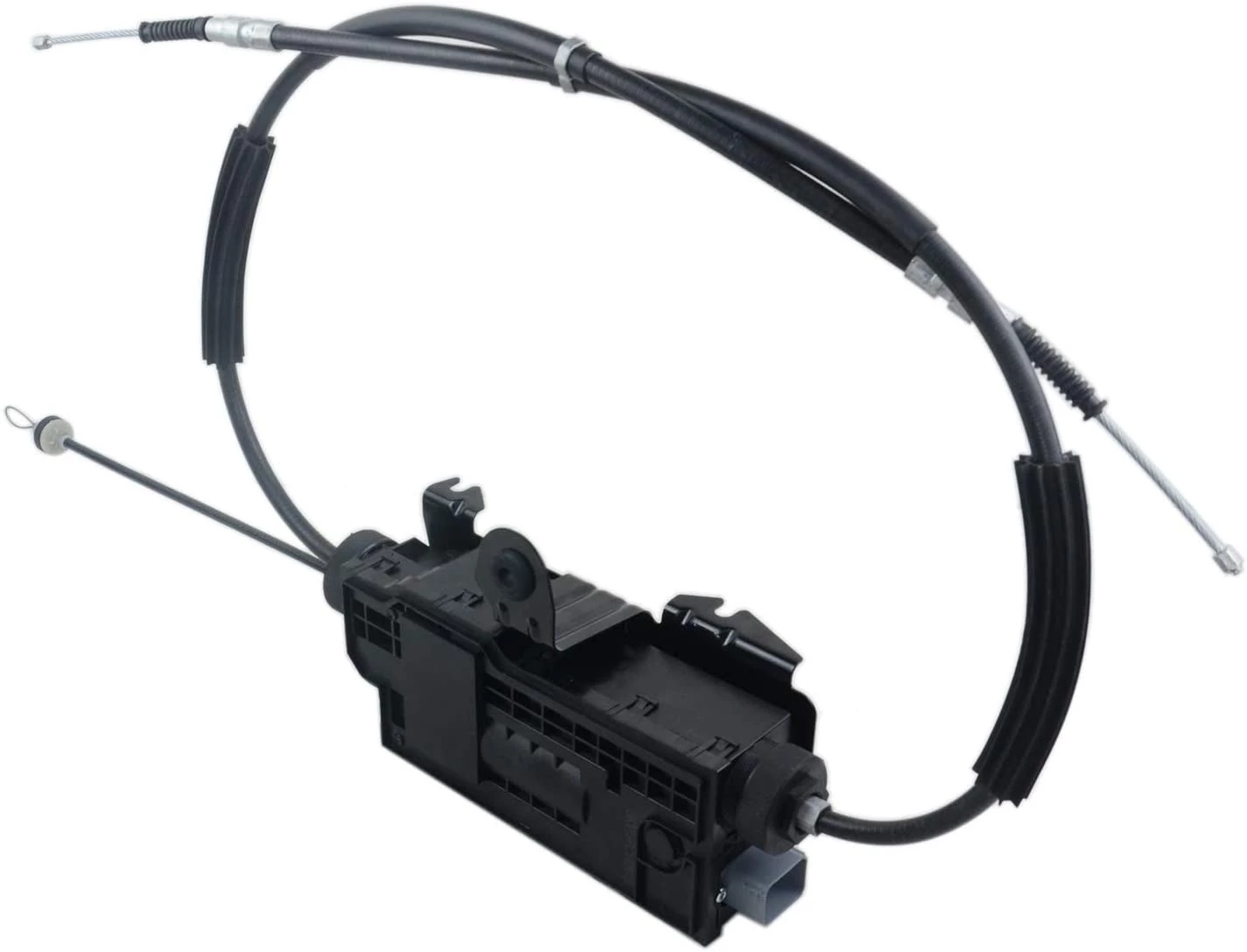

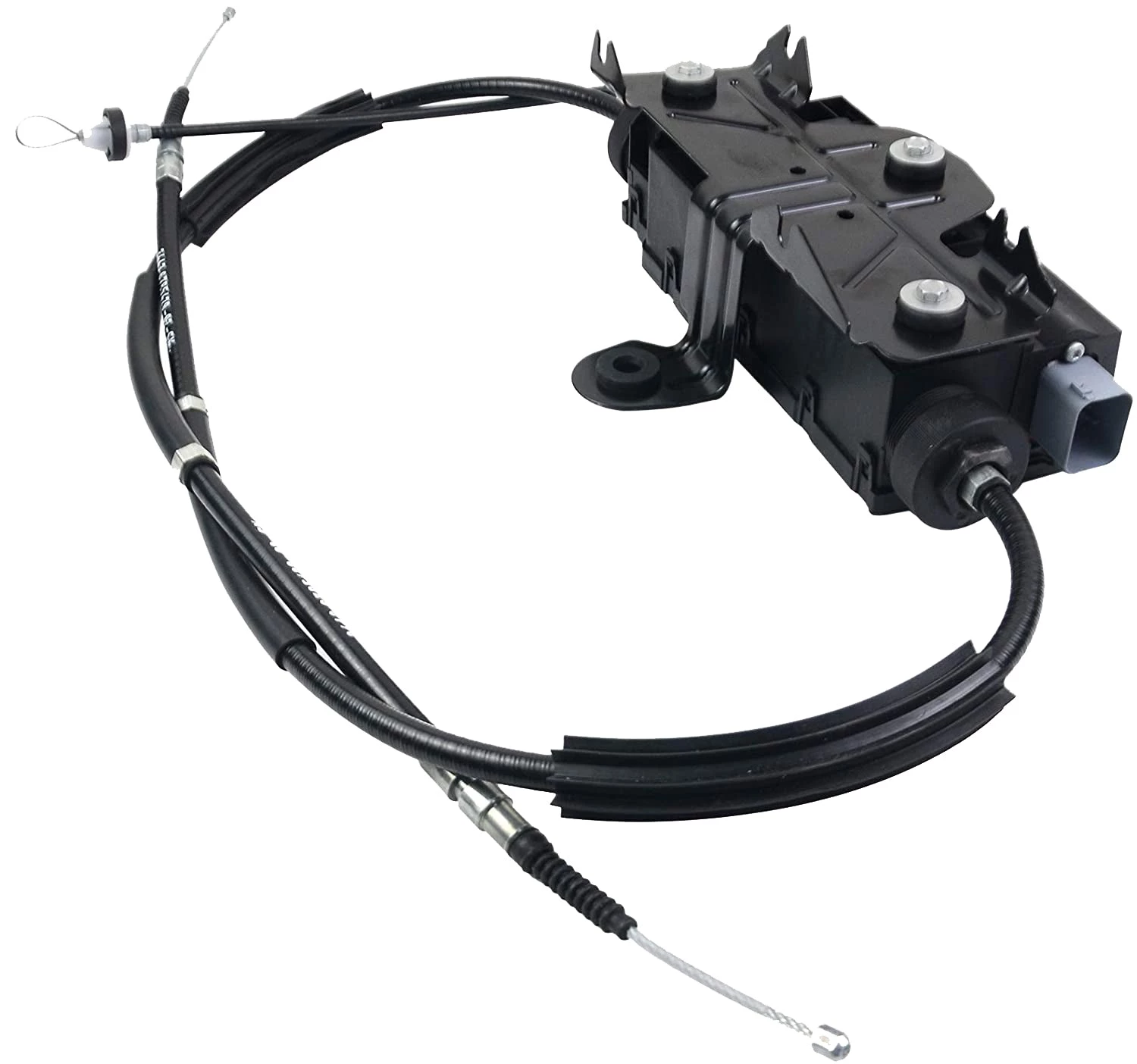

HJL Autoparts Parking Brake Actuator With Control Unit 34436869479 Replacement For BMW 5 Series GT F07 – #02512-54100

PARTS NUMBER: 02512-54100

Application:
Replacement for BMW 5′ F07 GT   (09/2008 — 06/2013)

Replacement for BMW 5′ F07 GT LCI   (08/2012 — 02/2017)

Reference Part number:
34436874219,34436869479,34436868045,34436856932,34436797176,34436796893,34436784653,34436797790

Installation Steps:
1. Check the degree of wear on the skin of the handbrake. If the wear is severe, it is recommended to replace the handbrake skin first. (Note: It’s handbrake skin, not footbrake skin)

2. Install the hand brake cable and adjust the gaps between the hand brake and the brake drums.

3. Insert the computer plug, open the key door of the mobile phone, and check whether the electronic handbrake module is working normally (never reverse the second and third steps)

4. If the electronic handbrake template is working properly, install the emergency unlocking cable.

Attention:
Please follow installation instruction steps to ensure a successful installation. Will not accept any return/refund request due to incorrect installation.

Package Include:
1 x Parking Brake Actuator w/Control Unit
**(not including metal holder plate shown in photo)
